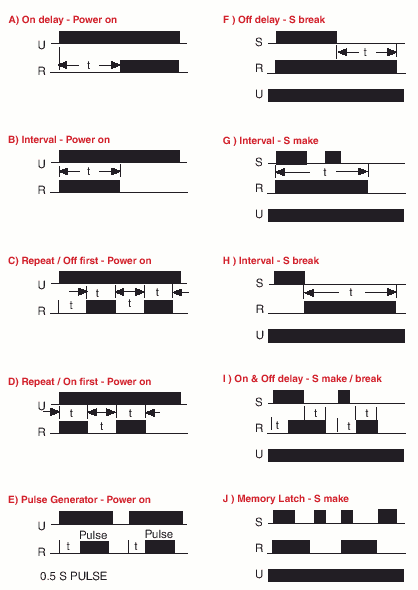

Operating Modes

Features - Specifications

Selectable time range
 0.1 s to 10 days
10 knob selectable functions:
- ON delay

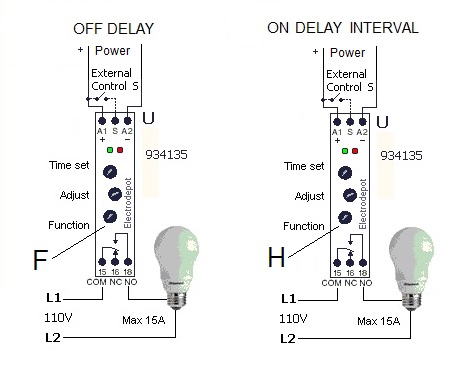

- OFF delay
- Interval on trigger open
- Double interval
- Delay on release
- Symmetrical recycler ON first
- Symmetrical recycler OFF first
- Special functions latch and single shot
Automatic or manual start
Repeatability: ≤0.2%

LED indication
 time status and power supply
Operating Voltage: 12 to 240 VAC
Start Switch Closure Time: 20 milliseconds minimum
Power Consumption:
0.7 to 3VA. AC,  0.5 to 1.7 W. DC

Output
Type: Relay Contacts, S.P.D.T.
Rating:
10 Amp. max. resistive at 240 volts A.C.;
100 mA at 5 VDC min. load current
Life: Mechanical -10,000,000 operations
          Full Load - 500,000 operations

Environmental IP20
Storage Temperature: -23°C to 70°C,
Operating Temperature: -20°C to 60°C

17.5 mm DIN-rail housing
35 mm DIN-rail mounting DIN/EN 50 022

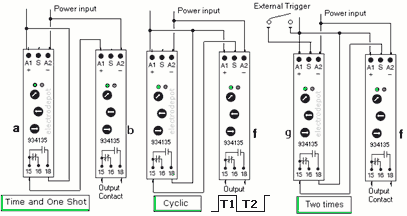

Applications:      Transmitter         Receiver
