Sealed Mechanical float switch
Features
. The switch can
be installed by tie-wrapping it to a support
structure or by adding an external weight to the
cable.
SPDT contacts are included so the unit
can be used to empty or fill a tank or sump.
- SPDT mechanical switch
- 10A contacts rated for 1/4 hp
- Float suitable for sewage and
pump control
- CPE-jacketed 6' (2m) cord
- External cord weight available(
INCLUDED)
 |
Specifications
| Float |
ABS plastic
160°F (70°C), cable 140°F (60°C) |
| Contact |
SPDT 10A 120/240
VAC, 1/4 hp
120/240 VAC |

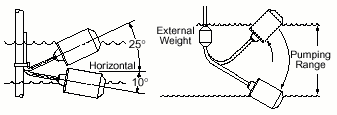

| Operation |
angle 25° above, 10° below
horizontal |
| Dimensions |
4.6"H x 2.6"
dia. (11.75 x 6.67
cm) |
| Cable |
16/3 CPE jacketed,
|
| |
|
|
Application
 |
|
 |
|
|
