Industrial Wireless Radio Controls

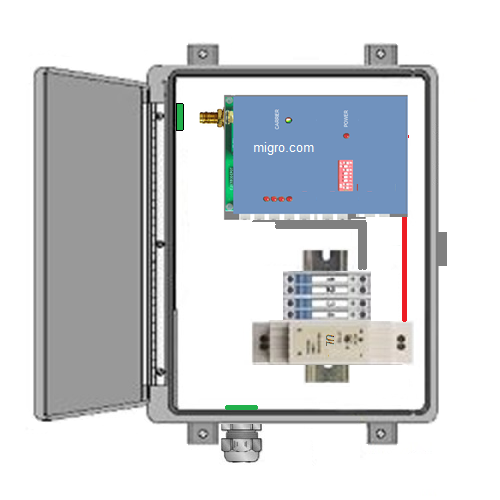

Transmitter &
Receiver 943301
Performance
•
3 km (2 Miles)
line-of-sight w Yagi antenna
• Operation: 120/240VAC
or 12VDC
•
Transmitter input N/O Dry contact
• Relay Output SPDT, 6A Class 2 pilot duty
•
Heavy Duty NEMA4, IP65 UL Fiber enclosure
• License free 430 - 450MHz Industrial
ISM band
• Factory configured systems, Ready to operate
• No setup or programming required
■
Specifications
|
.
|
Operation
2 Ch |
Transmitter |
Receiver |
|
Continuous
|
Close switch
Ch 1
Close switch
Ch 2 |
Relay 1 ON
Relay 2 ON |
| Supply power |
120/240VAC or
12VDC / 5watt |
|
Inputs |
N/O Normally
Open, digital dry contact |
| Transmitter power |
per
FCC Part 15.249,
50mV/m @ 3m |
| Transmission |
Digital Encoded
Gaussian_frequency-shift_keying |
|
Channels |
16 addresses per system
GFSK |
|
Input Wiring |
Din Terminals,
Dry Contact |
| Response |
Loop 500 msec
|
| Weight |
12 lb (5.40kg)
each unit |
| Dimensions * |
10"W x
8"H x
4"D (254 x 200 x 100 mm) * may
vary |
|
Specifications Digital Receiver
|
| Supply power |
120/240VAC or
12VDC / 5watt |
|
Output |
Relay 6Amp,
Class 2 pilot duty |
| Frequency |
433 MHz •
License free Industrial ISM band |
|
Configuration |
DIP switch factory
preset |
|
Compliance |
FCC CFR part 15.247, 95 sub E |
| Wiring |
Screw Terminals |
| Antenna Z |
50 Ohm SMA RF connector |
| Ambient temp |
14° to 140° F (-10° to 60°
C) |
| Enclosure |
NEMA4, IP65 Fiber UL listed |
Optional
Solar power pack
DISCLAIMER:
Radio control equipment
in not to be used in life safety.
Radio Installations shall be
performed by a certified professional. |
|
|
Wireless Range from: 3 Km (2 Miles )
Optional
Extended range up to to 16 Km (10 Miles)
■
Applications:
Industrial Monitoring, Pump control, Monitor remote instruments, sensors,
Lighting control, Packing and mobile system, PLC remote, SCADA,
Factory process control, Alarms, Generators, Solar, Wire replacement. |
.Please
request a quotation
| Part
Channel |
|
Options: |
943301 Single (1)
943302 Two (2)
943304 Four (4)
|
|
High, Low Status level indicator lamp
Fail Safe module
Battery Backup module |
Package include:
One Base
Transmitter, One Base Receiver
Two Yagi 938432 Antennas with 10ft coaxial cable,
NEMA 4 Fiber enclosures &
Instructions |
Transmitter 4 Channel
 |
Receiver 4 Channel
Typical application example
Remote Command & Monitor |
|
|
