Performance
Single Channel
Portable Transmitter & Base Receiver
•
Range ( 5 km )
3 Miles
• Operation: 120/240VAC
or 12VDC
•
Transmitter Handheld multichannel
•
Multiple
Transmitters and Receivers
• Relay Output 3PST, 20A Class 2 pilot duty
Output mode: Start Stop - ON/OFF
•
Heavy Duty NEMA4, IP65 UL Fiber enclosure
• License free 430 - 460MHz Industrial
ISM band
• Factory configured systems, Ready to operate
• No setup or programming required

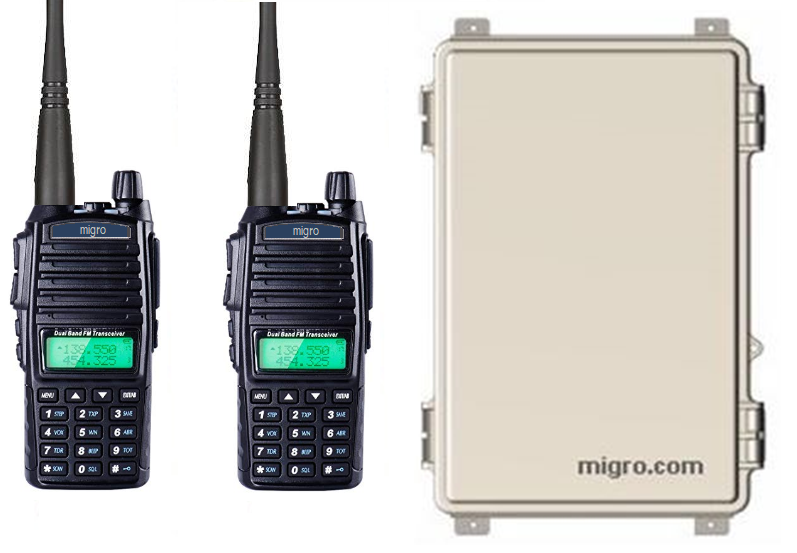

Package include:
TWO (2) Handheld Transmitter, One
(1) Base Receiver
One Omni Antenna with 12ft coaxial cable, NEMA 4 Fiber enclosures &
Instructions
|
Operation |
Transmitter |
Receiver |
Retentive
3 Pole contactor |
Pulse #1
Pulse #2 |
Contactor 1 ON
Contactor
1 OFF |
|
|
|
|
Performance
•
360m (1200ft)
line-of-sight w 6 inch antenna
• Operation: 120/240VAC.
24VDC or 12VDC
•
Transmitter input N/O Dry contact
• Relay Output SPDT, 6A Class 2 pilot duty
•
Heavy Duty NEMA4, IP65 UL Fiber enclosure
• License free 430 - 450MHz Industrial
ISM band
• Factory configured systems, Ready to operate
• No setup or programming required
■
Specifications
Installation features
■ Operation license-free 433MHz ISM band
■ Easy installation,
No programming
|
Operation |
Transmitter |
Receiver |
|
Continuous: |
Close switch
Open switch |
Relay ON
Relay OFF |
|
. |
Part
943312 12VDC
Part
943324 24VDC
Part
943327 120/240VAC
■
Request a
Quotation
■
Applications:
Industrial Monitoring
Pump control, Monitor
instruments, sensors
Lighting, Mobile system
PLC remote, Alarms
Factory process control
Generators. Remote alarms.
Solar, Wire replacement |
.
|
