Industrial Wireless Long Range Radio Controls
| |
Applications:
Industrial Monitoring, Pump control, Monitor remote
sites, Tank Level,
Lighting control, Remote Mobile system, PLC remote, Irrigation, Gates.
Factory process control, Traffic management and Signaling, Alarms, Generators, Marinas, Solar
systems, Wire replacement. |
|
|
Heavy Duty Extended Range
M154 Radios
 |
....... |
Performance
3 miles ( 5
Km )
• Extended range up to 20
Km
• Not limited to line-of-sight
communication
Migro Encoding/Decoding technology
Four (4) Independent Channels
Output selection: Latch or Momentary
Wide Antenna Selection: Omni, Yagi
Power: 12 VDC -
Solar Ready
Dip Switch 12 Bit Code setting
Multiple Transmitters and Receivers
Optional repeater if necessary
Factory pre- configured system, Ready
No setup or programming required
No fees from carriers, No hacking
No software or internet
NT
Please
request a quotation |
|
|
| |
|
|
Specifications
M154T Digital Transmitter
|
| Supply power |
12VDC / 8Watt |
|
Inputs |
N/O Normally
Open, digital dry contact |
| Transmitter power |
per
FCC Part 15.249,
50mV/m @ 3m |
| Frequency |
154MHz •
License free MURS band |
| Transmission |
Digital Encoded
Gaussian_frequency-shift_keying. |
|
Channels |
16 addresses per system
GFSK |
|
Power draw |
Standby 1mA,
Transmission 1200mA Solar Ready |
| Response |
Loop 500 msec
|
| Weight |
5.36
lb ( 2.44kg )
each unit |
| Dimensions |
Weatherproof, IP66,
9" W x9" H x
4" D 8900 |
|
|
Specifications
M154R
Digital Receiver
|
| Supply power |
12VDC / 5Watt |
|
Output |
Relay 8Amp, SPDT (NO/NC) Class 2 Pilot Duty |
| Output mode |
Momentary or Latching, Optional
Continuous (*) |
|
Configuration |
DIP switch factory
preset |
|
Compliance |
FCC CFR part 15.247, 95 sub E |
|
Power draw |
Standby 30mA, Full
load 400mA |
| Antenna Z |
50 Ohm, RF Connector
SO-239 |
| Ambient temp |
14° to 140° F (-10° to 60°
C) |
| Enclosure |
Weatherproof , IP65,
9" W x9" H x
4" D 9600 |
|
|

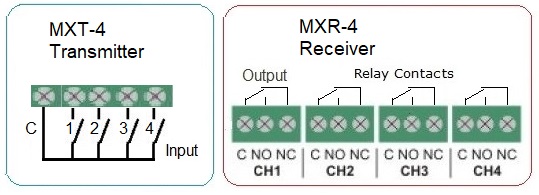

Wiring Terminals
FCC Certified
ID: OHKFMT154
COMPLIANCE: per FCC Part 15.249, 50mV/m @ 3m
Circuit board Compliance with UL796 and UL
94
MIL-STD-461E for Electro-Magnetic
Interference (EMI)
MIL-STD-901D Grade A for High Impact Shock
MIL-STD-167B for Vibration
|
|

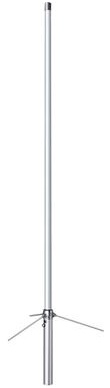

ANTENNA
Selection 154Mhz - 50 Ohm:
Short Range |
Medium Range |
Long Range |
Long Range |
|
| 931501 |
931487 |
931490 |
931503 Yagi 3 Element |
|
| 2.0 dBi, 17
inch |
4.5 dBi, 37 inch |
6.7 dBi, 125 inch |
9.2 dBi, 42 inch |
|
| PL-259 |
SO-239
& 12ft Coax |
SO-239 |
SO-239 |
|
| |
|
|
|
|
Optional (*) Control Modules:
|
- NOTE
FCC Timing Compliance
OPERATION: Transmitter sends an interval pulse
as long as the input is activated by a control, switch
or sensor etc. The Receiver at the other end
turns the output ON decodes the interval to verify the
status of the transmitter, If The Transmitter Ends the control action,
or loss of power or carrier,
then The receiver decoder will acknowledge and turn the
Receiver output OFF until the signal is activated again
By Example: In a Pump Control, When
the float Sw Closes, Transmission starts, and the
Receiver activates the output Relay ON , it will
maintain these status until the Float Sw Opens then
after the time preset (ex, 30sec) deactivates the
output Relay OFF
|
Four (4)
channel continuous mode module (FCC
Compliant)

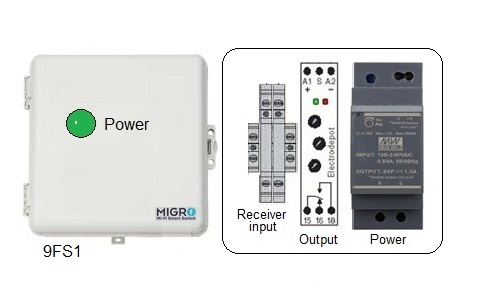

Fail Safe sequence module, Power, Carrier
failure or end of transmission control
Comply with FCC part 15.247 sub E on Continuous
transmission timing

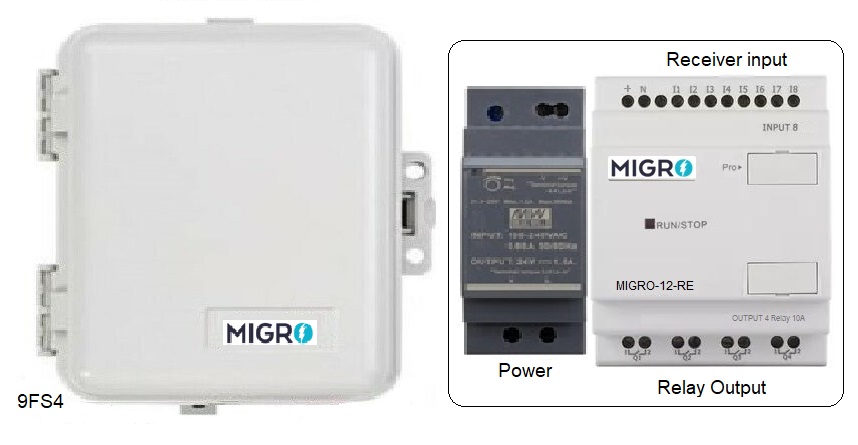

9FS4 Receiver
Module
Operating voltage 12VDC
Input: Dry Contact
Output: 8A SPST
Enclosure Weatherproof IP65, 9x9x4 inches
NOTE: Transmitter or receiver not supplied,
|
 |

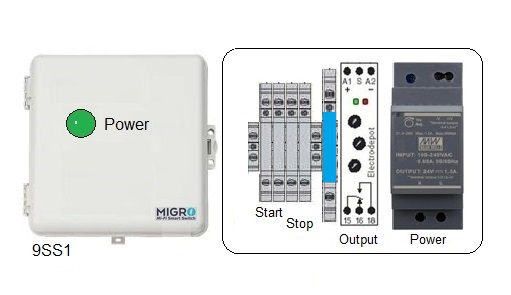

Start Stop Receiver Module
Operation:
Transmitter send a momentary pulse via Channel One (1) to
START; the Receiver Control Module Output turns ON
It will stay
ON Until the transmitter sends the STOP signal via
Channel Two (2) to turn
the Receiver Output OFF
|
Start/Stop output Module
9SS1: Two input from the receiver,
One output to energize the external contactor
Operating voltage 12VDC
Input: Dry Contact
Output: 10A SPDT
Enclosure Weatherproof IP65, 9x9x4 inches
NOTE: Transmitter and receiver not supplied,
|
 |

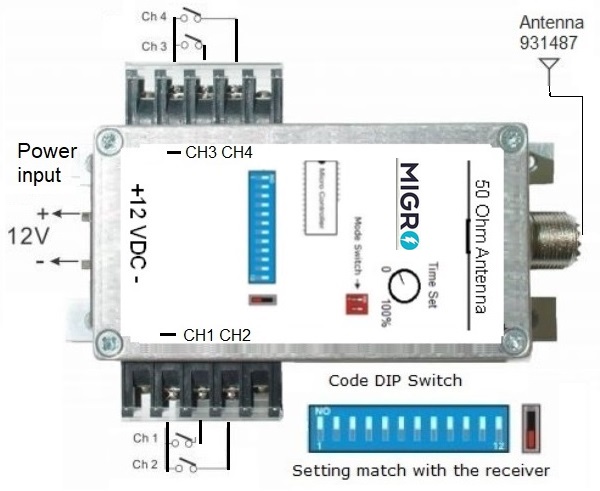

Transmitter wiring
Board Transmitter Configuration
|
|
 |
|
OEM Transmitter Box Configuration (
Same as Board Settings ) |
|
 |
|
|
Control modules to Comply with FCC part 15.247 sub E on Continuous
transmission timing |
|
|
|
DISCLAIMER:
Radio control equipment
in not to be used in life safety.
Radio Installations shall be performed by a certified
professional |
|
|
|
