Performance
■ 30 dBm High power transmitter
■ Short range antenna 1000 ft
■ 2 Mile
(3.km) line-of-sight With
938432 Yagi antenna
■ Optional long range 5 Miles ( 8 km )
■ Input Dry isolated contact N/O
■ Relay output 5 Amp Class 2
Installation features
■ Operation license-free 433MHz ISM band
■ Easy installation,
No programming
■
Wring: removable terminal block
■ Weatherproof enclosure
■ Dimensions 9x9x4 inches
■
Applications:
Industrial Monitoring,
Pump control,
Monitor remote, instruments,
Lighting, Mobile system,
PLC remote, Gates, Process control
Generators. Remote Alarms.
Solar, Wire replacement

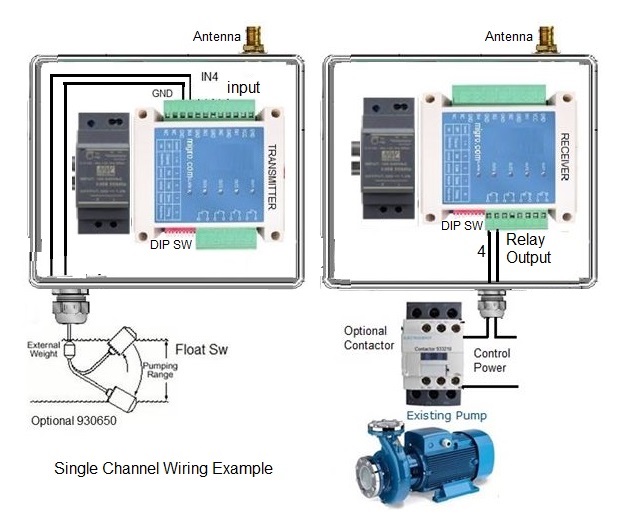

Application Example
DISCLAIMER:
Radio control equipment
in not to be used in life safety.
Radio Installations shall be
performed by a certified professional. |
|
|
 |
Wireless Control
Systems |
|
Four (4) Channel
Transmitter & Receiver in Weatherproof
enclosure 9x9x4 inches
Operation 12VDC or 120/220 VAC,
|
|
|
 |
938432 Yagi antenna 3 E
Gain 7 dBi,
2 Mile
(3.km)
433 MHz, Rating:
150 Watts
Impedance 50 ohms
N terminal
Vertical beam 55 degrees -
Horizontal beam 60 degrees
Base Length: 18", Weight:
4.0lb
10 ft coax cable and
connector |
|
|
|
|
 |
938091
Omni Antenna
7 Inch
Short Range
433 MHz, Unity gain,
Impedance 50 ohms
Magnetic base
With 60 inch Coax Cable
and SMA m connector |
|
