Special Order Solid State Contactor Set
Solid
state contactor with heat sink on DIN rail
Energy saving very low power drain,
no moving parts
Quiet operation,
No
acoustical noise,
No closure click, No vibration

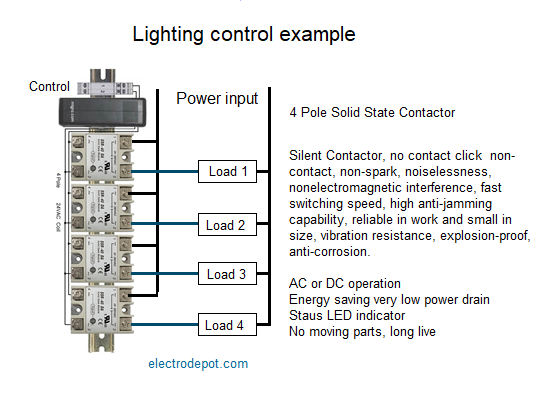

Applications: Studios, Lighting, Heater, Automation, Harsh environments
FEATURES
- 40 A.
Incandescent or resistive load
- 32 A.
Ballast and
General purpose
- 30 A.
Inductive load
Power ON LED
indicator
Normally
open (N.O.)
contacts
Solid Conductor:
25
mm2 Max torque 0.6 Nm
Stranding Conductor:
16 mm2, Max torque
0.6 Nm
Max switching 1000
switch/hr
No humming,
No noise, No sound
CE approved. IEC 60664-1
UL listed
|
Control:
24VAC
or 120-240VAC
Coil: 5VA
inrush, 2VA sealed
Power: 120- 480VAC, 40A
Electric strength: 4
kV
IEC AC Rate:
AC-1; 16 kW,
AC-3; 11 kW @400V
Operating Temperature
-30…+70 °C (-22…+158 °F)

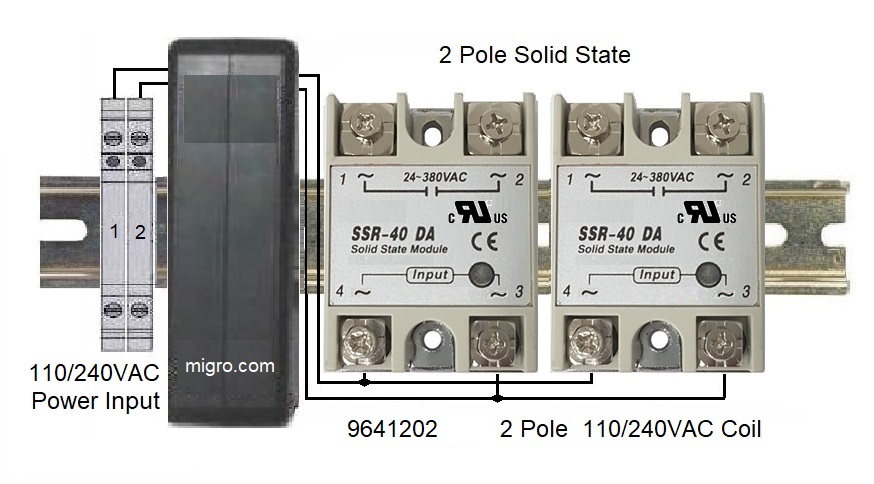

Size 2 Pole: 180 x 82 x
82 mm /
7" x 3.1" x 3.1" (L*W*T);

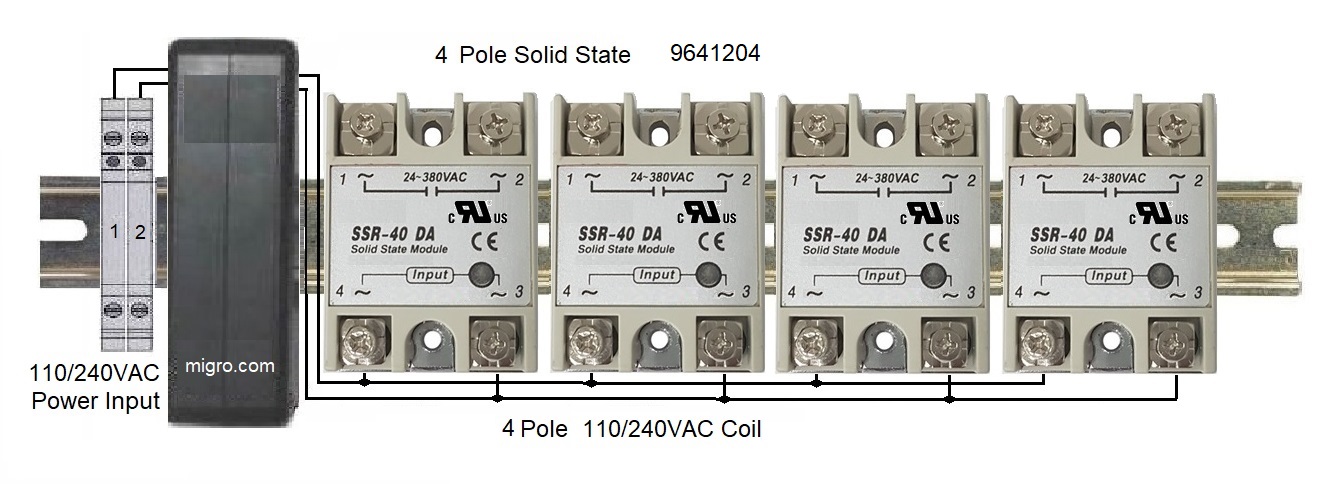

Size 4 Pole: 250 x 82 x
82 mm /
10" x 3.1" x 3.1" (L*W*T);
Screw Dia : 0.4cm /
0.157"
Weight: 2 Pole 382g,
4 Pole 567g
|
.
|
Single pole
 |
3 pole
 |
|
|
|
