Single Pole, 480 VAC
Contactors - N/O Contacts
Solid
state contactor with heat sink.
Energy saving very low power drain,
no moving parts
Quiet operation,
No
acoustical noise,
No closure click, No vibration
Applications: Studios, Lighting, Heater, Automation, Harsh environments
FEATURES
- 40 A.
Incandescent or resistive load
- 32 A.
Ballast and
General purpose
- 30 A.
Inductive load
Power ON LED
indicator
Normally
open (N.O.)
contacts
Solid Conductor:
25
mm2 Max torque 0.6 Nm
Stranding Conductor:
16 mm2, Max torque
0.6 Nm
Max switching 1000
switch/hr
No humming,
No noise, No sound
CE approved. IEC 60664-1
UL listed
|
Control: 3-32VDC
or 80-240VAC
Coil: 3VA
inrush, 1VA sealed
Power: 120- 480VAC, 40A
Electric strength: 4
kV
IEC AC Rate:
AC-1; 16 kW,
AC-3; 11 kW @400V
Operating Temperature
-30…+70 °C (-22…+158 °F)
Size (Approx.) 52 x 82 x
82 mm /
2.3" x 3.1" x 3.1" (L*W*T);
Screw Dia : 0.4cm /
0.157"
Weight : 182g
|
.
|

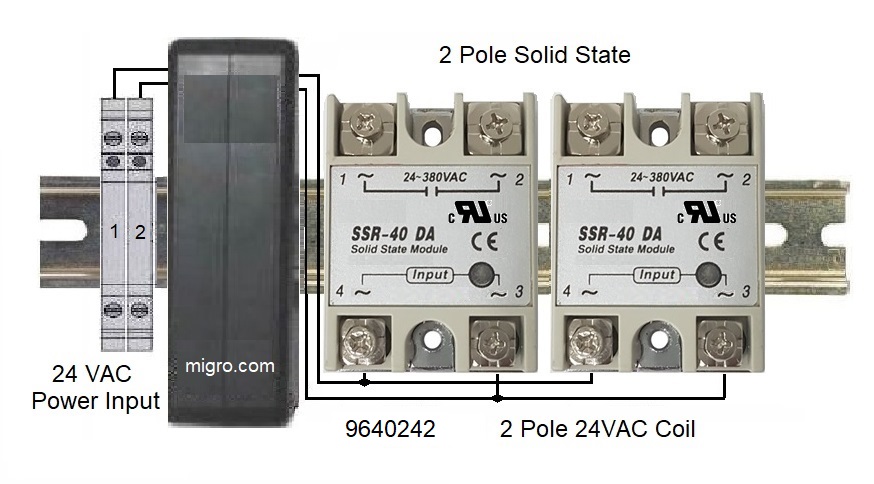

Multi pole
 |
3 pole
Absolutely
Silent |
|
|
|
